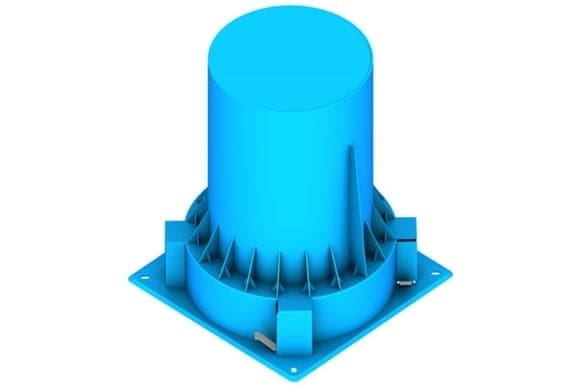

Description
- PROMASEAL® Hi-Blu Collar is available in THREE (3) sizes:
-
- Small, for pipes up to a nominal 65mm;
- Medium, for pipes between the sizes of 65mm and 100mm; and
- Large, for pipes of a nominal 150mm.
Please check with Promat before installing the collar to ensure the size and type of pipe being installed can be used with the particular size and type of collar.
DIMENSION
| Code no. | Hi-Blu 65 | Hi-Blu 100 | Hi-Blu 150 | ||
|---|---|---|---|---|---|
| Body | H | mm | 250 | 250 | 250 |
| H1 | mm | 45 | 57 | 57 | |
| H2 | mm | 205 | 193 | 193 | |
| D1 | mm | 95 | 140 | 194 | |
| D2 | mm | 132 | 178 | 232 | |
| D3 | mm | 97 | 142 | 197 | |
| Flange | D4 | mm | 154 | 198 | 253 |
| Carton Quantity | 6 | 6 | 2 | ||
PROMASEAL® Hi-Blu Collar are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.
Fire Collar for Plastic Pipes Penetration Seals
PROMASEAL® CIH is designed to be fixed to formwork prior to the pouring of concrete floor slabs. The collar accommodates the uPVC pipe fitting within the thickness of the slab enabling space saving.
For slabs that use lost formwork or are less than 120mm thick, please consult us.
